770582-1
Manufacturer:
TE Connectivity
Mfr.Part #:
770582-1
Datasheet:
Description:

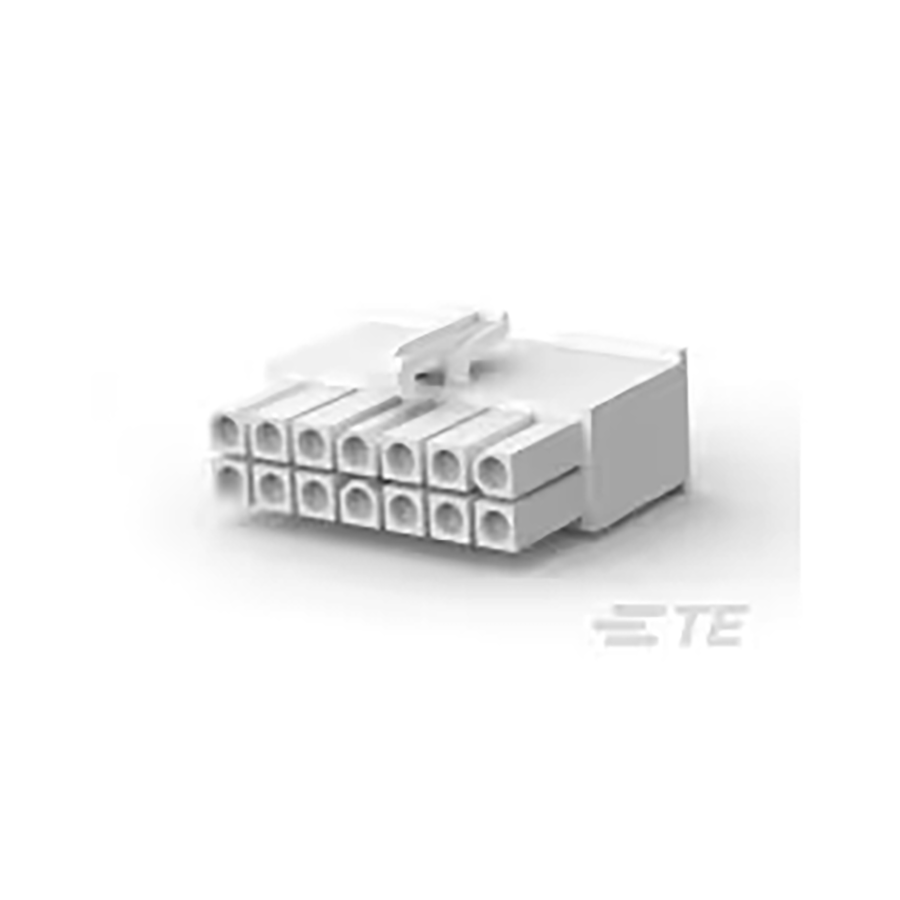

Headers and Wire Housings Cable, Free Hanging Plug Number of Positions:14 Pitch:4.1148 mm
| Parameter | Value |
|---|---|
| Length | 30.68 mm |
| Width | 15.19 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Pitch | 4.1148 mm |
| Current Rating | 9.5 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 14 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 14 |
| Connector Type | Plug |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 162 µm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | White, Natural |
| Contact Gender | Male |
| VDE Tested | Yes |
| Shell Material | Polyamide |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 383
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.66941 | $6.69410 |
| 25 | $0.64462 | $16.11550 |
| 50 | $0.63180 | $31.59000 |
| 100 | $0.62496 | $62.49600 |
| 300 | $0.57089 | $171.26700 |
| 500 | $0.52150 | $260.75000 |
| 1000 | $0.47705 | $477.05000 |
